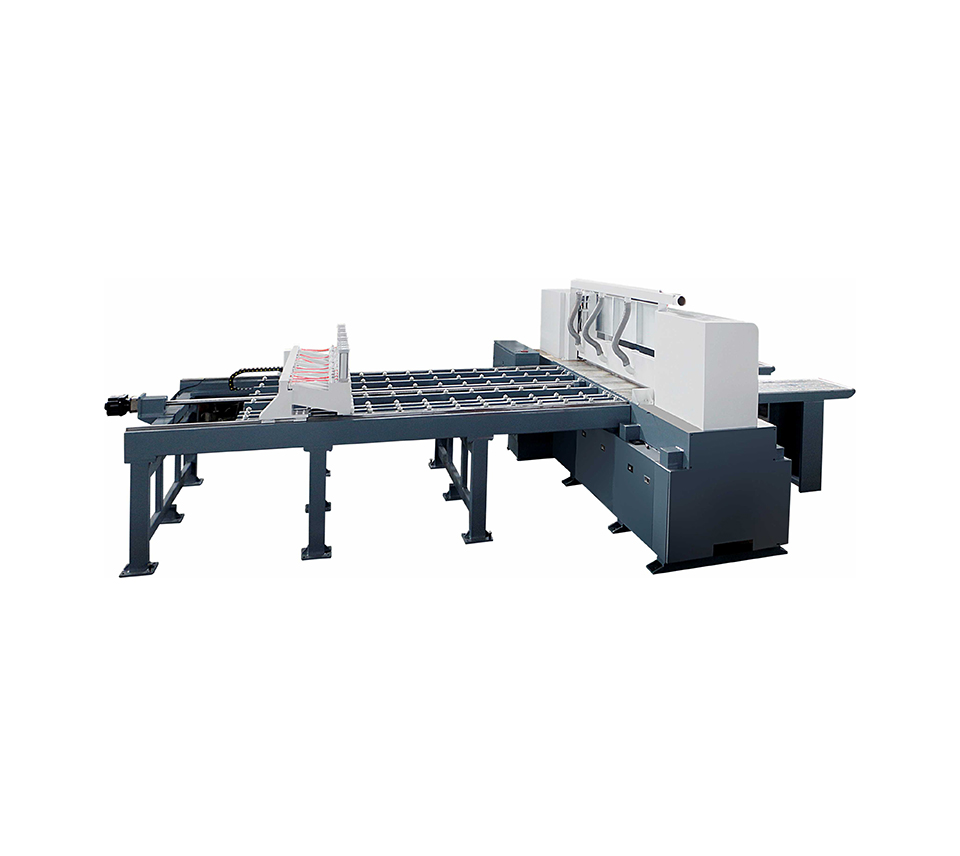

product name：hc-16260nc
model numberhc-16260nc
sawing capacity, cutting length 3800
cutting width 2600
maximum cutting height 160mm
maximum exposed height of blade 165mm
master saw blade, master saw motor15kw
diameter of main sawφ555mm
spindle diameter of main sawφ 38mm
main saw speed4000 r/min
saw block, walking frequency conversion motor1.5kw
forward speed, maximum 10m/min
back speed, maximum 17 m/min
automatic feeder motorac 3kw
use air pressure≥5.0 kg/cm2
table height above ground1150 mm
machine tool dimensions (length, width and height) 7000×5650×2150
voltage380v/50hz
http://www.zjsd.com/en/gsyjc/p-104.html
sawing capacity, cutting length 3800
cutting width 2600
maximum cutting height 160mm
maximum exposed height of blade 165mm
master saw blade, master saw motor15kw
diameter of main sawφ555mm
spindle diameter of main sawφ 38mm
main saw speed4000 r/min
saw block, walking frequency conversion motor1.5kw
forward speed, maximum 10m/min
back speed, maximum 17 m/min
automatic feeder motorac 3kw
use air pressure≥5.0 kg/cm2
table height above ground1150 mm
machine tool dimensions (length, width and height) 7000×5650×2150
voltage380v/50hz
http://www.zjsd.com/en/gsyjc/p-104.html
